ZDLS electronic electric angle control valve

ZDLS electronic electric angle control valve
  • sell:021-32051999
  • sell:021-32050777
  • fax:021-66099555

Details

  • Product Introduction
  • Service Promise
  • Ordering Process

ZDLS electronic high-pressure electric angle regulator consists of PS series and 3610 series straight-stroke electric actuator and low flow resistance through single-seat valve. The electric actuator is an electronic integrated structure with servo amplifier, input control signal (4-20mADC or 1-5VDC) and power supply can control the valve opening to adjust the pressure, flow, liquid level, temperature and other parameters. It has the characteristics of sensitive action, simple connection, large volume, small volume and high adjustment precision. Angular high pressure regulating valve is a product developed to solve the problems of short service life, easy fracture of valve stem and easy shedding of bushing under the condition of high pressure or high pressure difference, serious cavitation and erosion. It uses multi-stage throttling to distribute the pressure difference, reduces cavitation, erosion, deflection damage, greatly improves the service life of the control valve, especially in the urea system than ordinary high-pressure valve life increased by 2-3 times. The valve body is rectangular, the valve core is single-directional structure, the valve body flow path is simple, the resistance is small, especially suitable for high viscosity, containing suspended solids and granular medium fluid regulation, can avoid coking, adhesion, plugging.


Main technical parameters of electronic electric high pressure angle regulating valve


Nominal path(mm)
6
10
15
25
Valve seat diameter(mm)
3
4
6
4
5
7
8
10
6
7
8
10
12
7
8
10
12
16
20
discharge coefficientKv
0.04
0.1
0.1
0.4
0.4
1
1.6
2.5
4
6.3
8
0.16
0.4
0.16
1
1.6
2.5
0.63
1
1.6
2.5
4
0.063
0.25
0.25
0.63
Nominal path(mm)
32
40
50
65
80
100
125
150
200
Valve seat diameter(mm)
16
20
30
20
38
30
50
38
65
50
80
65
100
65
125
100
150
125
200
discharge coefficient
6.3
8
16
8
25
16
40
25
63
40
100
63
160
100
250
160
400
250
600
Adjustable range
Kv value <18 when r= "20:1; Kv value" >18 R=30:1
Nominal pressure
1.6、4.0、6.4、10、16、22、32MPa
Spool form
Sleeve guide single seat plunger spool
Flow characteristics
straight line
Form of action
Electric and electric
working temperature
Common type-40 ~ 230 C; Heat sink type230 ~ 450 C, special order 450~600 C
Flanges standard
Comply with JB/T2769-92 standard, and can be ordered according to ANSI, JIS and DIN.
control signal
4 ~ 20mA.DC; 1 ~ 5V.DC; 0 ~ 10V.DC (related to Executive Agency).
Power Supply
S220V.AC, 50HZ; 380V.AC, 50HZ (related to Executive Agency)


Nominal path(mm)
20
25
40
50
65
80
100
150
200
250
300
Valve seat diameter(mm)
10
12
15
20
25
32
40
50
65
80
100
125
150
200
250
300
discharge coefficientKv
1.6
2.5
4
6.3
10
16
25
40
63
100
160
250
400
630
1000
1600
Adjustable range
30:1
Nominal pressure
Standard products 1.6, 4, 6.4MPa;
Spool form
Single seat plunger spool
Flow characteristics
Linear and equal percentage
working temperature
Common type-40 ~ 230 C; Heat sink type230 ~ 450 C, special order 450~600 C
Flanges standard
According to JB78-59 and JB79-59 standards, it can be ordered according to JB/79.1-94, JB/79.2-94, ANSI, JIS, DIN and so on.

Note: Products whose working temperature, nominal pressure and nominal diameter exceed the scope of the list can be settled through consultation with this company.


Performance index of electronic electric high pressure angle regulating valve


Leakage rate: IV, less than 10-4 of rated flow.


Backlash: 2% with 3610L.


There are 1% basic errors in matching PSL executing agencies:


The executing agency with 3610L is + 2.5%.


Matching PSL executive body is + 1%.


Note: the filler used in the test is standard PTFE packing.


Electronic electric high pressure angle control valve main parts material


Valve body material: ZG230-450, ZG1Cr18Ni9Ti, 316, 316L, wear resistant alloy, etc.


Core material: 1Cr18Ni9Ti, 316, 316L, wear resistant alloy, F4, etc.


Filler material: PTFE and flexible graphite.


Allowable differential pressure of electronic electric high pressure angle control valve


Nominal path(mm)
20
25
40
50
65
80
100
150
200
250
300
Valve seat diameter(mm)
10
12
15
20
25
32
40
50
65
80
100
125
150
200
250
300
Executive Agency
Allowable pressure difference△P(MPa)
PSL
PSL202
6.4
6.4
6.4
4.90
3.14
1.92
1.23
0.78
PSL204
4.31
2.76
1.76
1.04
0.69
0.44
PSL208
1.86
1.23
0.78
0.50
0.35
0.20
PSL320
1.26
0.87
0.49
0.32
0.22
PSL
361LSA-20
6.4
6.4
6.4
4.90
3.14
1.92
1.23
0.78
361LSB-50
4.79
3.06
1.96
1.16
0.76
0.49
361LSC-65
1.51
0.99
0.64
0.41
0.28
361LSC-99
0.63
0.44
0.25
0.16
0.11


Note: (1) the actual configuration needs to be determined according to the specific process parameters.


(2) If the allowable pressure difference is not clear or the maximum working pressure difference is beyond the scope of the list, please contact us and take appropriate measures to solve it.

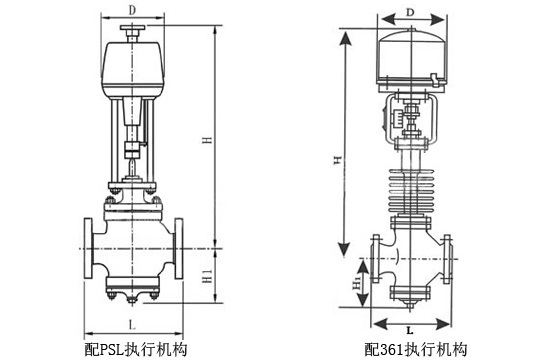

Main dimensions of electronic electric high pressure angle control valves
Nominal path(mm)
20
25
32
40
50
65
80
100
125
150
200
L1(mm)
98
105
105
120
135
190
225
270
315
367
L2(mm)
PN1.6MPa
85
95
115
115
130
145
155
175
200
240
300
PN4.0MPa
85
95
115
115
130
145
155
175
200
240
300
PN6.4MPa
100
115
130
130
150
170
190
215
250
275
325
PSL
H(mm)
Common type
753
761
789
778
793
819
858
893
921
951
956
Heat sink type
883
891
919
908
923
892
1021
1056
1120
1150
1156
D(mm)
176
weight(KG)
13.5
22.5
25.5
29.5
50
60
78
119
157
255
361L
H(mm)
Common type
516
542
552
688
744
783
818
976
1006
1036
Heat sink type
646
654
682
818
907
946
981
1175
1205
1235
D(mm)
225
310
weight(KG)
21
30
33
41
45
65
75
93
172
210
308
Note: the data in this table is standard configuration data, and will vary with the different configuration of the executing agency.
