ZJHM pneumatic sleeve regulating valve

ZJHM pneumatic sleeve regulating valve
  • sell:021-32051999
  • sell:021-32050777
  • fax:021-66099555

Details

  • Product Introduction
  • Service Promise
  • Ordering Process

ZJHM pneumatic sleeve control valve is small, light, high performance, large capacity, is in line with the IEC standards of a new generation of universal control valve products. It is suitable for the production process system of general fluid medium and technological conditions.


The product consists of a new pneumatic multi spring actuator and a low flow resistance sleeve valve. The characteristics are as follows:


1. Adopting balanced core, small unbalanced force, large allowable differential pressure and stable operation.


2. Large spool guiding surface can improve oscillation caused by eddy current and impact and reduce damage.


3, noise reduction is about 10bd compared with ordinary one or two seat control valves.


4, simple structure, easy installation and maintenance.


Main technical parameters of pneumatic sleeve regulating valve


公稱通徑mm
25
40
50
65
80
100
150
200
250
300
350
400
閥座直徑mm
25
32
40
50
65
80
100
125
150
200
250
300
可與本公司
商洽生產
額定流量
系數Kv
直線
11
17.6
27.5
44
69
110
176
275
440
690
1000
1600
等百分比
10
16
25
40
63
100
160
250
400
630
900
1440
公稱壓力MPa
0.6 1.6 4.0 6.4
行程mm
16
25
40
60
100
流量特性
直線、等百分比、快開型
介質溫度℃
-40~230℃(常溫型),散熱片式230~450℃(中溫型),特殊訂貨-100~600℃
法蘭標準
符合JB78-59、JB79-59標準,可按JB/79.1-94、JB/79.2-94、ANSI、JIS、DIN 等標準訂貨生產
閥體材質
PN
(MPa)
0.6,1.6
WCB(ZG230-450) CF3CF8 CF8M
4.0,6.4
WCB(ZG230-450)、ZG1Cr18Ni9Ti、ZG0Cr18Ni12Mo2Ti CF8 CF8M
閥體型式
直通單座鑄造球型閥
閥芯材質
1Cr18Ni9、0Cr18Ni12Mo2Ti CF8 CF8M
上閥蓋形式
普通式(常溫型)、熱片式(中溫型)、低溫型
可調比R
50:1
氣源接頭
M16×1.5


Note: ANSI, JPI, JIS flange products can be provided for users, and the flange distance is determined according to user needs.


Pneumatic sleeve control valve main parts material


零件名稱
材料
溫度范圍
閥體上閥蓋
HT200
-20~200℃
ZG230-450
-40~450℃
ZG1Cr18Ni9Ti
-250~550℃
ZG0Cr18Ni12Mo2Ti
-40~600℃
閥芯、閥座
1Cr18Ni9
-250~550℃
0Cr18Ni12Mo2Ti
-250~550℃
填 料
聚四氟乙烯
-40~200℃
膜 片
丁晴橡膠夾增強滌淪織物
壓縮彈簧
60Si2Mn
膜 蓋
A3


Main technical parameters of pneumatic sleeve regulating valve actuator


型 號
ZHA(B)-22
ZHA(B)-23
ZHA(B)-34
ZHA(B)-45
you效面積cm2
350
350
560
900
行 程mm
16
25
40
60
彈簧范圍KPa
20~100(標準);40~200;80~240;20~60;60~100


Performance index of pneumatic sleeve regulating valve


項目
指標值
項目
指標值
基本誤差%
不帶定位器
±5.0





氣關
不帶定位器
始點
±5.0
終點
±2.5
帶定位器
±1.0
帶定位器
始點
±1.0
終點
±1.0
回差%
不帶定位器
3.0
氣開
不帶定位器
始點
±2.5
終點
±5.0
帶定位器
1.0
帶定位器
始點
±1.0
終點
±1.0

死區%
不帶定位器
3.0
帶定位器
0.4
允許泄漏量L/h
1×10-3×
閥額定
容量
額定行程偏差%
±2.5


Note: This product carries out GB/T4213-92 national standard.


Allowable pressure difference of pneumatic sleeve control valve


開關
方式
執行
機構
型號
彈簧
范圍
KPa
氣源
壓力
KPa



公稱通徑(閥座直徑)mm
25
40
50
65
80
100
150
200

ZHA-22
20~100
20~100
40~200
0.14
0.25
0.40
-
P
P或R
3.00
6.4
6.4
ZHA-23
20~100
20~100
40~200
0.14
0.25
0.40
-
P
P或R
2.25
6.4
6.4
1.95
6.4
6.4
ZHA-34
20~100
20~100
40~200
0.14
0.25
0.40
-
P
P或R
2.36
6.4
6.4
2.04
6.4
6.4
1.67
6.4
6.4
ZHA-45
20~100
20~100
40~200
0.14
0.25
0.40
-
P
P或R
1.41
6.4
6.4
1.14
6.4
6.4

ZHA-22
20~100
40~200
80~240
0.14
0.25
0.40
-
P或R
P
1.5
4.5
6.4
ZHA-23
20~100
40~200
80~240
0.14
0.25
0.40
-
P或R
P
1.13
3.38
6.40
0.98
2.93
6.4
ZHA-34
20~100
40~200
80~240
0.14
0.25
0.40
-
P或R
P
1.18
3.54
6.4
1.02
3.06
6.4
0.84
2.51
5.85
ZHA-45
20~100
40~200
80~240
0.14
0.25
0.40
-
P或R
P
0.71
2.12
4.94
0.57
1.71
4.00


Note: 1, P - valve positioner; R - pressure relay.


2. Allow the differential pressure to close the P2=0 state of the valve and the maximum value of delta P.


3. The maximum pressure difference is over 1.0MPa, and the surface of the plug and sleeve is hardfacing.


Accessories can be supplied:


Locator, air filter pressure reducer, retaining valve, stroke switch, valve position conveyor, solenoid valve, handwheel mechanism, etc.

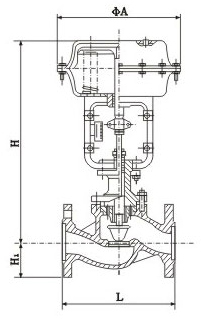

Main dimensions of pneumatic sleeve control valves


DN
L
H
H1
質量(kg)
φA
PN16
PN40
PN64
普通
高溫
PN6
PN16
PN40
PN64
PN6
PN16
PN40
PN64
25
185
197
210
410
560
50
57
70
20
24
285
40
222
235
251
455
620
65
75
85
26
35
50
254
267
286
457
627
70
82
90
30
40
65
276
292
311
610
790
80
92
100
47
66
360
80
298
317
337
622
807
95
100
107
55
78
100
352
368
394
640
850
105
110
117
125
65
99
150
451
473
508
870
1130
132
142
150
172
130
160
470
200
600
650
890
1150
160
170
187
207
175
250
250
730
775
1203
1523
187
202
225
235
350
470
580
300
850
900
1234
1554
220
230
257
265
500
660
