ZDLN electronic electric double seat regulating valve is composed of PS series and 3610 series straight stroke electric actuator and low flow resistance through single seat valve. (can also be equipped with other brand direct travel agencies). The electric actuator is an electronic integrated structure with servo amplifier, input control signal (4-20mADC or 1-5VDC) and power supply can control the valve opening to adjust the pressure, flow, liquid level, temperature and other parameters. It has the characteristics of sensitive action, simple connection, large volume, small volume and high adjustment precision. The control accuracy and performance are obviously improved than that of DKZ. The single seat valve is suitable for occasions where the leakage is strict, the pressure difference between the front and back of the valve is low, and there is a certain viscosity. ZDLN electronic electric double-seat regulating valve is widely used in electric power, metallurgy, chemical industry, petroleum, environmental protection, light industry, equipment and other industries.
Main performance parameters of electronic electric double seat regulating valve
Nominal pathmm | G3/4” | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | |||||||||
Seat diametermm | 3 | 4 | 5 | 6 | 7 | 8 | 10 | 12 | 15 | 20 | 26 | 32 | 40 | 50 | 66 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 可與本公司 商洽生產 | ||
Rated discharge coefficientkv | Linear type | 0.08 | 0.12 | 0.20 | 0.32 | 0.5 | 0.8 | 1.8 | 2.8 | 4.4 | 6.9 | 11 | 17.6 | 27.5 | 44 | 69 | 110 | 176 | 275 | 440 | 690 | 1000 | 1600 | ||
Equal percentage | 1.6 | 2.5 | 4 | 6.3 | 10 | 16 | 25 | 40 | 63 | 100 | 160 | 250 | 400 | 630 | 900 | 1440 | |||||||||
Nominal pressure(MPa) | 0.6,1.6, 2.5, 4.0, 6.4 | ||||||||||||||||||||||||
Trip(mm) | 10 | 16 | 25 | 40 | 60 | 100 | |||||||||||||||||||
Flow characteristics | straight line | Straight line, Equal percentage, open quickly. | |||||||||||||||||||||||
working temperature℃ | -40 ~ 230 C (Chang Wenxing), heat sink 230~450 C (medium temperature), special order -100 ~ 600 C | ||||||||||||||||||||||||
Flange size | It meets JB78-59 and JB79-59 standards and can be ordered and produced according to JB/79.1-94, JB/79.2-94, ANSI, JIS, DIN and other standards. | ||||||||||||||||||||||||
body material | WCB(ZG230-450)、ZG1Cr18Ni9Ti、ZG0Cr18Ni12Mo2Ti CF8 CF8M | ||||||||||||||||||||||||
Valve core material | 1Cr18Ni9,SS304,0Cr18Ni12Mo2Ti,SS316,ZG1Cr18Ni9Ti | ||||||||||||||||||||||||
Valve type | Straight through two seat casting ball valve | ||||||||||||||||||||||||
Upper bonnet type | Ordinary type (room temperature), hot plate (medium temperature), long neck type (low temperature). | ||||||||||||||||||||||||
Equipped with electric actuator type. | PSL | PSL-201 | PSL-202 | PSL-204 | PSL-208 | PSL-312 | PSL325 | ||||||||||||||||||
361L | 361LSA-08 361LXA-08 | 361LSA-20 | 361LSB-30 | 361LSB- 50 | 361LSC-65 | 361LSC-99 | |||||||||||||||||||
Explosion-proof type | 361LXA-20 | 361LXB-30 | 361LXB- 50 |
Note: 1. It can provide users with ANSI, JPI, JPI and other local flange standard products, flange spacing according to user needs to determine.
2. working temperature, nominal pressure, nominal diameter beyond the list of products can be resolved with our company.
Electronic electric double seat regulating valve actuator
Model | Rated output forceN | speedmm/s | technical parameter | ||||
PSL | 361L | PSL | 361L | PSL | 361L | PSL | 361L |
201 | 361LSA-08 361LXA-08 | 1000 | 800 800 | 0.25 | 4.2 4.2 | Power supply: AC220V 50Hz
Input signal: DC4-20mA
DC1-5V
(shielded wire for signal line)
Output signal: DC4 ~ 20mA
Protection level: IP67
Handwheel | Power supply: AC220V 50Hz
Input signal: DC4-20mA
DC1-5V
(shielded wire for signal line)
Output signal: DC4 ~ 20mA
Protection level: IP55
Flameproof sign: Exd II BT4
Handle with a handle |
202 | 361LSA-20 361LXA-20 | 2000 | 2000 2000 | 0.50 | 2.1 2.1 | ||
204 | 361LSB-30 361LXB-30 | 4500 | 3000 3000 | 0.50 | 3.5 3.5 | ||
208 | 361LSB-50 361LXB-50 | 8000 | 5000 5000 | 1.00 | 1.7 1.7 | ||
312 | 361LSC-65 | 12000 | 6500 | 0.60 | 2.8 | ||
325 | 361LSC-99 | 25000 | 10000 | 1.0 | 2.0 |
project | Index value | ||
Basic error% | Match 3610L + 2.5; with positioner + 1. | ||
Return difference% | Match 361L + 2; match PSL + 1. | ||
dead zone% | 1.0 | ||
Always point deviation% | Electric opening | Starting point | ±2.5 |
End | ±2.5 | ||
Electrical closing | Starting point | ±2.5 | |
End | ±2.5 | ||
Adjustable range | 50:1 | ||
Rated Trip deviation% | 2.5 | ||
Discharge quantityL/H | JB/T7387-94 grade III is less than the rated capacity of valve 10-3 * |
Nominal path(mm) | 25 | 40 | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | |||
Valve seat diameter(mm) | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | |
Executive Agency | Allowable pressure difference△P(MPa) | ||||||||||||
PSL | PSL202 | 6.4 | 6.4 | 6.4 | 5.1 | ||||||||
PSL204 | 6.4 | 6.4 | 5.62 | ||||||||||
PSL208 | 6.4 | 5.31 | 3.97 | ||||||||||
PSL320 | 6.4 | 4.14 | |||||||||||
361L | 361LSA-20 | 6.4 | 6.4 | 6.4 | 6.4 | ||||||||
361LSB-50 | 6.4 | 6.4 | 6.25 | ||||||||||
361LSC-65 | 6.4 | 4.23 | 3.23 | ||||||||||
361LSC-99 | 3.31 | 2.07 |
Nominal path(mm) | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | ||
L(mm) | PN1.6MPa | 185 | 200 | 220 | 250 | 275 | 300 | 350 | 410 | 450 | 550 | 670 | 770 | |
PN4.0MPa | 190 | 210 | 230 | 255 | 285 | 310 | 355 | 425 | 460 | 560 | 740 | 805 | ||
PN6.4MPa | 200 | 210 | 235 | 265 | 295 | 320 | 370 | 440 | 475 | 570 | 750 | 820 | ||

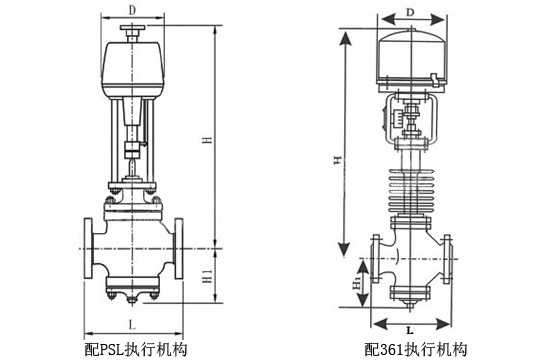

H1(mm) | 117 | 120 | 139 | 144 | 188 | 208 | 220 | 268 | 278 | 320 | 441 | 503 | ||
PSL | H(mm) | Common type | 907 | 910 | 955 | 960 | 1112 | 1122 | 1134 | 1213 | 1223 | 1265 | 1813 | 1889 |
Heat sink type | 1037 | 1040 | 1085 | 1090 | 1275 | 1285 | 1297 | 1412 | 1422 | 1464 | 1058 | 2134 | ||
D(mm) | 176 | 225 | ||||||||||||
weight(KG) | 22.5 | 24.5 | 35.5 | 39.5 | 72 | 85 | 122 | 181 | 237 | 378 | 680 | 840 | ||
361L | H(mm) | Common type | 670 | 673 | 840 | 845 | 1037 | 1047 | 1059 | 1293 | 1303 | 1345 | 1538 | 1614 |
Heat sink type | 800 | 803 | 970 | 975 | 1200 | 1210 | 1222 | 1492 | 1502 | 1544 | 1783 | 1859 | ||
D(mm) | 225 | 310 | ||||||||||||
weight(KG) | 30 | 32 | 51 | 55 | 87 | 100 | 137 | 194 | 250 | 391 | 720 | 880 |
