F343CX worm wheel sector glasses valve
- sell：021-32051999
- sell：021-32050777
- fax：021-66099555
Details
- Product Introduction
- Service Promise
- Ordering Process
F343CX worm gear sector glasses valve is also known as worm gear sector blind valve, worm wheel flap valve, worm gear sector valve, by left valve body, middle valve body, right valve body, fan blind plate, screw nut, stainless steel compensator, two worm gear transmission mechanism and other components. It is connected by three screw rods, and three valve bodies are respectively fixed on the base to form a rigid structure. The middle valve body and the right valve body are connected with stainless steel expansion pipe, the left valve body and the middle valve body are respectively connected with three screw rods with left and right trapezoidal threads, and the three screw rods are rotated forward (or backward) simultaneously, then the left and the middle valve bodies are compressed (or separated). A blind plate is arranged in the middle of the three screw rods, and the blind plate rotates around the axis. The following two screw rods are equipped with positioning blocks with blind plates at the same position. When the blind plates rotate, the blind plates can be prevented from drifting and the sealing rings from scratching. One of the screw rods is equipped with a worm gear transmission mechanism to loosen the clamping valve body.
Main performance parameters
公稱壓力MPa | 0.25 | 0.15 | 0.10 | 0.05 |
密封試驗壓力MPa | 0.275 | 0.165 | 0.11 | 0.055 |
強度試驗壓力MPa | 0.40 | 0.225 | 0.15 | 0.075 |
適用溫度℃ | 丁腈橡膠 | 硅橡膠 | 氟橡膠 | |
＜120 | ＜250 | ＜300 | ||
適用介質 | 煤氣等有毒、有害、易燃?xì)怏w | |||
采用標準 | 連接法蘭尺寸符合JB/T81-94標準，檢測方法符合GB/T13927-92標準 | |||
主要零部件材料 | 閥體、閘板為碳鋼；連接軸、伸縮器為碳鋼或不銹鋼；密封圈為橡膠 | |||

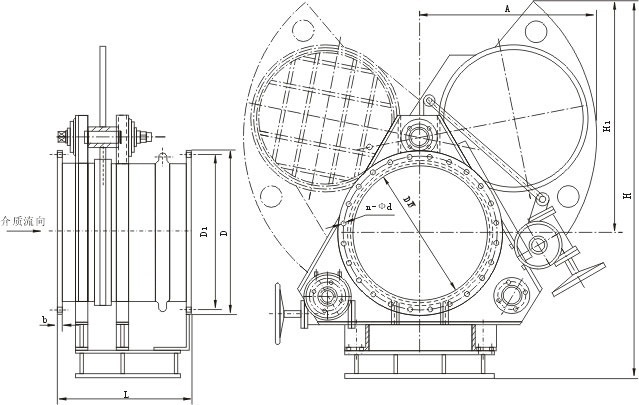

構圖.jpg)
DN | D | D1 | b | n-φd | L |
300 | 440 | 395 | 22 | 12-φ22 | 500 |
350 | 490 | 445 | 22 | 12-φ22 | 500 |
400 | 540 | 495 | 22 | 16-φ22 | 600 |
450 | 595 | 550 | 24 | 16-φ22 | 600 |
500 | 645 | 600 | 24 | 16-φ22 | 600 |
600 | 755 | 705 | 24 | 20-φ26 | 600 |
700 | 860 | 810 | 26 | 24-φ26 | 800 |
800 | 975 | 920 | 26 | 24-φ30 | 800 |
900 | 1075 | 1020 | 28 | 24-φ30 | 800 |
1000 | 1175 | 1120 | 30 | 28-φ30 | 800 |
1100 | 1275 | 1220 | 30 | 28-φ30 | 800 |
1200 | 1375 | 1320 | 30 | 32-φ30 | 800 |
1300 | 1475 | 1420 | 32 | 32-φ30 | 800 |
1400 | 1575 | 1520 | 32 | 36-φ30 | 850 |
1500 | 1675 | 1620 | 32 | 36-φ30 | 850 |
1600 | 1790 | 1730 | 32 | 40-φ30 | 850 |
1800 | 1990 | 1930 | 32 | 44-φ30 | 1100 |
2000 | 2190 | 2130 | 32 | 46-φ30 | 1100 |
Operation methods and matters needing attention
1. Use the wrench to turn three connecting screw counterclockwise in turn, so that the valve body and the gate are separated and balanced, with an appropriate amount of clearance (about 16 mm). After confirmation, the gate is rotated to the working position, and the screw is connected by reverse rotation, so that the gate is in close contact with the valve body to achieve the purpose of absolute sealing.
2. The rubber sealing ring must not be adhered to the valve body or hard friction, in order to prevent damage to the rubber sealing ring, damaging the working performance of the valve.
3. When the left and right valve bodies are loosened, the medium will overflow. To ensure safety, the gas butterfly valve in front of the glasses valve should be closed, and ventilation and other measures should be taken to ensure safety.
The best quality, first-class service Qigao creates more value for you!
"Qigao Valve" expects to continuously improve service quality and strive for excellence. "Sincere service" is the eternal theme of "Qigao". "Qigao" strictly followsIS09001-2000 Quality system certification requirements, strict quality control, responsibility to people, to ensure the healthy operation of production, sales and service. Strengthen communication with users and provide quality products to our customers with perfection and perfect service. Hereby our factory makes the following commitments:
Product Standards：
Products in strict accordance with ChinaGB、HG Standard and USAPISuch as standard design, manufacturing, acceptance. The hardness of the sealing surface meets the requirements of the state and the width exceeds the national standard.
pre-sale service：
Product introduction, technical exchange, non-standard product design, troubleshooting。
Sale service：
A trustworthy contract guarantees timely delivery and keeps in touch with customers. For special or duplicate products, our factory arranges technicians to use and troubleshoot the products for users.
After sales service：
1、"Qigao" brand product quality period is from the factory12In the month, the implementation of the "three guarantees" service (return, replacement, warranty).
2、During the use of our products, our factory regularly organizes technical and quality inspection personnel to visit and consult users for feedback on product quality, usage status and improvement opinions, so as to further improve product quality.
3、Respond quickly to the quality of user complaints, after-sales service personnel rushed to the scene in 24-36 hours (48 hours outside the province).
4、For after-sales service, users are required to fill out the quality feedback information form after the service and make an appraisal opinion in order to improve the service quality of Qigao.
1、If the customer has special requirements for the product, the following instructions must be provided in the order contract.：
a、Structure length；
b、Connection Type；
c、Nominal diameter, full diameter, reduced diameter, pipe size;
d、Operating medium and temperature, pressure range；
e、Tests, inspection standards and other requirements
2、The factory can configure various types of driving devices according to customer's specific requirements.。
3、If the type and model of the valve are determined by the customer, the customer shall correctly state the meaning and requirements of the model and sign the contract under the condition that the supplier and the buyer understand each other.
4、For futures and order customers, please call us in advance to tell the required valve model, specification, quantity, delivery time and location, and timely transfer to the factory account according to the total 30% deposit or full payment. The rest of the payment is pending. Import before shipment to arrange delivery in time.
Order Process：
1、Customer purchase list fax to021-33872143，Or call us 021-33872141
2、Receive customer purchase list, provide valve model selection and quotation (price list)。
3、Specific agreement: delivery date, special requirements, etc.。
