200P adjustable pressure reducing valve

200P adjustable pressure reducing valve
  • sell:021-32051999
  • sell:021-32050777
  • fax:021-66099555

Details

  • Product Introduction
  • Service Promise
  • Ordering Process

The 200P adjustable pressure relief valve is a direct adjustable pressure relief valve. It adopts diaphragm type hydraulic operation mode and can be installed horizontally or vertically in water supply, fire fighting system or other clean water system. Within a certain range of flow, the outlet pressure of the valve can be controlled as a relative fixed value.


Model 200P is a pressure reducing valve with internal thread connection. It is compact and easy to install. It is equipped with a built-in filter screen. It is convenient to install and operate as a whole, avoiding jam and making it more safe and reliable.


Main technical parameters


公稱壓力(Mpa)
1.0
1.6
殼體度驗壓力(Mpa)
1.5
2.4
密封試驗壓力(Mpa)
1.0
1.6
MAX進口壓力(Mpa)
1.0
1.6
出口壓力范圍(Mpa)
0.09-0.8
0.1-1.2
壓力特性偏差(Mpa)
GB12244-1989
流量特性偏差(Mpa)
GB12244-1989
滲漏量
0
工作溫度
0℃-80℃


Material of main parts


零件名稱
零件材料
閥體、閥蓋
銅合金
閥座
H62
閥瓣
H62
閥桿
H62
O型圈
丁腈橡膠
密封圈
丁腈橡膠
膜片
夾織物丁腈橡膠
調節彈簧
60Si2Mn
過濾器
不銹鋼


Discharge coefficient Cv


DN
15
20
25
32
40
50
Cv
0.5
0.6
1.2
1.8
3.0
5.0

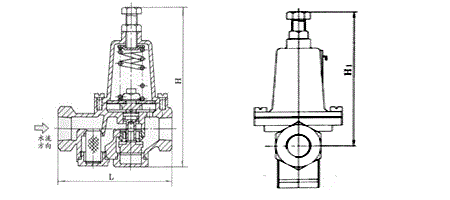

Main dimensions


DN
G
L
H1
H
D
15(1/2")
G1/2"
112
40
150
75
20(3/4")
G3-4"
140
55
190
90
25(1")
G1"
140
55
195
90
32(1-1/4")
G1-1/4"
165
55
212
98
40(1-1/2")
G1-1/4"
190
55
215
98
50(2")
G2"
200
65
265
120
