EG6B41J British standard normally closed pneumatic rubber lined diaphragm valve

EG6B41J British standard normally closed pneumatic rubber lined diaphragm valve
  • sell:021-32051999
  • sell:021-32050777
  • fax:021-66099555

Details

  • Product Introduction
  • Service Promise
  • Ordering Process

Product description of EG6B41J British standard closed pneumatic diaphragm valve


Design and manufacture: GB12239 or BS5156


Structure length: GB12221 or BS5156


Flange joint size: GB4216.4 or BS4504


Test and inspection: GB/T13927 or BS5156


Material of main parts


Body: cast iron, ductile iron, carbon steel, stainless steel.


Bonnet: cast iron, ductile iron, carbon steel, stainless steel.


Lining: no lining, rubber.


Diaphragm: Rubber


Disc: cast iron and carbon steel.


Stem: carbon steel, stainless steel


Hand wheel: Cast Iron


test


Lining layer: EDM test


Test and inspection according to BS6755 standard


Nominal pressure: PN (MPa)


Valve body: PN * 1.5


Sealing: PN x 1.1


Structural characteristics


Diaphragm valve is a special type of globe valve.


1. the opening and closing part of the elastic seal ensures that there is no internal leakage.


2. the streamlined flow path makes the pressure loss small.


3. there is no stuffing box, so there is no leakage.


4. The valve body and cover are separated by the middle diaphragm, so that the valve cover above the diaphragm, the valve stem and other parts are not eroded by the medium.


5. the diaphragm can be replaced and the maintenance cost is low.


6. The variety of lining materials can be applied to various media, and has the characteristics of high strength and good corrosion resistance.


EG6B41J pneumatic normally closed type rubber-lined diaphragm valve, EG6B41J-10, EG6B41J-6 type rubber-lined valve is used to change the channel section and the direction of media flow, with diversion, cut-off, adjustment, throttling, check, diversion or overflow functions. Valves can be used to control the flow of water, steam, oil, gas, mud, various corrosive media, liquid metals and radioactive fluids and other fluids.


Performance specification


型號
公稱壓力
PN(Mpa)
試驗壓力PS(Mpa)
適用介質
工作溫度(℃)
EG6B41WJF-6
0.6
0.9
0.66
W.非腐蝕性流體
J·一般腐蝕性流體
FS。強酸堿及各種有機溶劑
(溶融堿金屬元素氧除外)
≤100
≤85
≤150
EG6B41WJF-10
1.0
1.5
1.1
EG6B41WJF-16
1.6
2.4
1.76

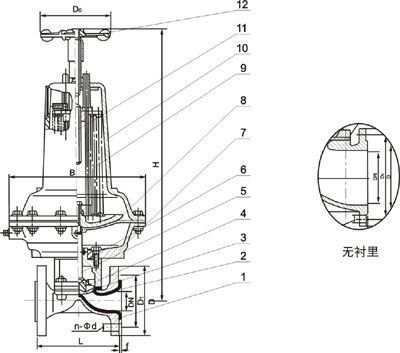

Parts List: 1, Body 2, Body Lining 3, Diaphragm 4, Disc 5, Lower Stem 6, Cover 7, Cylinder 8, Piston 9, Spring 10, Cylinder Head 11, Upper Stem 12, Handwheel
Main shape connection size and weight


型號
公稱通徑
DN(mm)
尺寸(mm)
氣動裝置
重量
(㎏)
L
f
D1
D
D0
n-d
H
B
代號
ES
耗氣量(cm3)
氣源壓力(MPa)
氣源接頭(in)
J型
W型
EG6B41WJF-16
20
121
117
2
75
105
120
4-13.5
168
61
163.87
0.3
1/8
7.2
25
131
127
2
85
115
120
4-13.5
394
168
61
196.65
0.3-0.4
1/8
8.9
32
150
146
2
100
140
120
4-17.5
400
168
61
229.4
0.3-0.4
1/8
10.6
40
163
159
2
110
150
165
4-17.5
485
260
62
1425.7
0.3-0.4
1/4
19.5
50
194
190
2
125
165
165
4-17.5
635
318
63
2284.1
0.3-0.4
1/4
34.9
EG6B41WJF-10
65
220
216
2
145
185
165
4-17.5
650
318
63
3048
0.3-0.4
1/4
39.9
80
258
254
2
160
200
165
8-17.5
660
318
63
3244.7
0.4-0.5
1/4
51.9
100,
309
305
2
180
220
280
8-17.5
816
425
64
6964.5
0.4-0.5
3/8
93.2
125
362
356
3
210
250
280
8-17.5
825
425
64
7439.7
0.4-0.5
3/8
105.3
150
412
406
3
240
285
310
8-22
1013
549
65
14912
0.5
3/8
184.5
EG6B41WJF-6
200
529
521
4
295
340
483
8-22
1300
749
66
49161
0.5
1/2
407.4


Note:


1. Pneumatic diaphragm valves can also be equipped with feedback signals, limiters or positioners to meet the needs of self-proximity control, program control or flow regulation.


2. The feedback signal of pneumatic valves is non-contact sensing technology.


3. Adopt cylinder piston type.


4. When the gas source fails, the handwheel can be operated to open the valve.
